Truck Wheel Fasteners: Wheel Nuts & Wheel Bolts
Wheel nuts and wheel bolts for trucks, buses and trailers: DIN 74361 thrust plate, sleeve and ball-seat nuts for European wheels, and serrated and JIS dual-wheel bolts for European, Russian, Chinese, Indian and Japanese axles.
Browse by Product Type
Two product families cover the wheels of trucks, buses and trailers. Open either for the full type list, sizes, vehicle fitment and a buying guide.
Truck Wheel Nuts
DIN 74361 pressure plate and sleeve nuts, flange and guide sleeve nuts for hub-piloted wheels; ball-seat nuts, flat nuts with Limes rings and inner and outer cap nuts for stud-piloted wheels. 41 standard sizes, class 10.
02
Truck Wheel Bolts & Studs

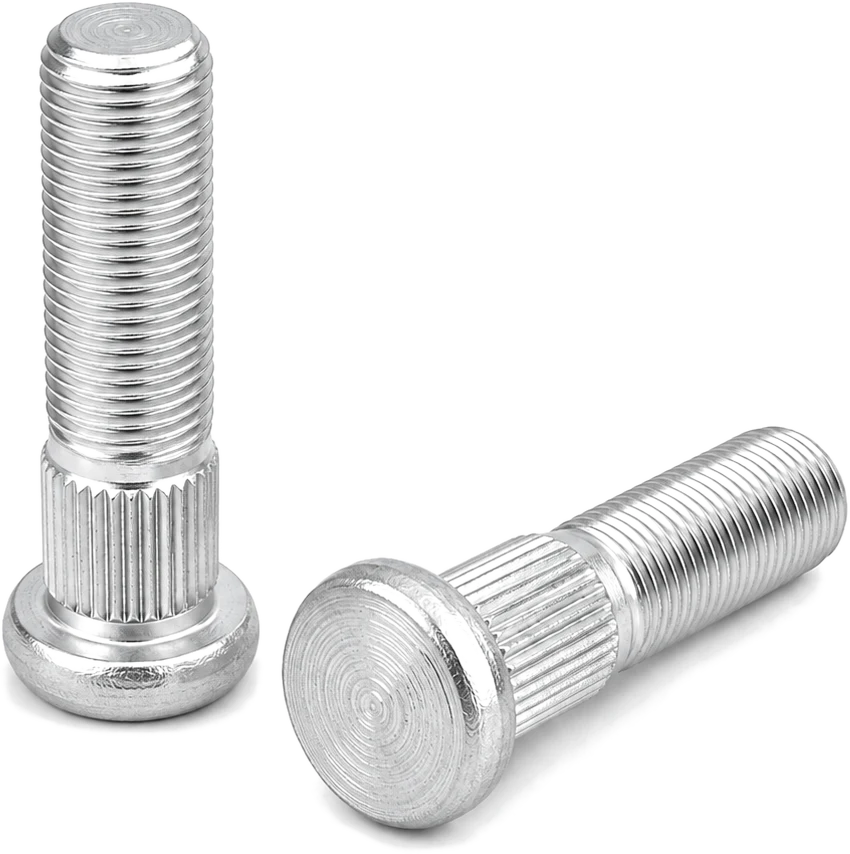

Serrated round-head studs, T-head and flange head wheel bolts pressed into the hub, double-ended studs, and dual-wheel bolts with inner and outer nuts. Class 10.9 or 12.9.
Thread Sizes & Specifications
The standard range below covers most European trucks, buses and trailers. Other sizes are made to your OE number, drawing or sample.
| Metric Threads | M14×1.5M16×1.5M18×1.5M20×1.5M22×1.5 |
|---|---|
| Imperial Threads | 7/8″-11 BSF7/8″-14 UNF |
| Nut Standards | DIN 74361-3 Form NForm K / L SleeveAS (Alcoa)DIN 74361-2 Form A / B / C |
| Seat Types | Flat with Thrust PlateBall R14 / R16 / R18Flat + Limes Ring |
| Hex Sizes | 19 mm22 mm24 mm27 mm30 mm32 mm33 mm |
| Nut Height | 15–31 mmSleeve Nuts 35–62 mm |
| Wheel Bolts | ISO SerratedJIS Dual-WheelLH / RH ThreadsM22×2.5Length 65–132 mm |
| Strength Class | Nuts: Class 10Bolts: 10.9 / 12.9 |
| Bolt Material | 40Cr35CrMoCarbon Steel |

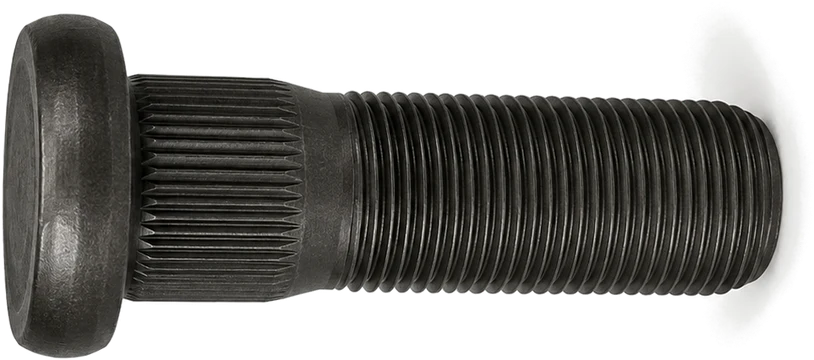

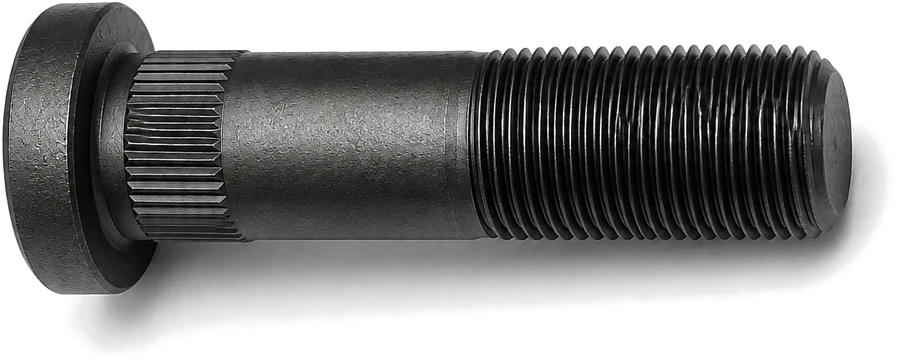

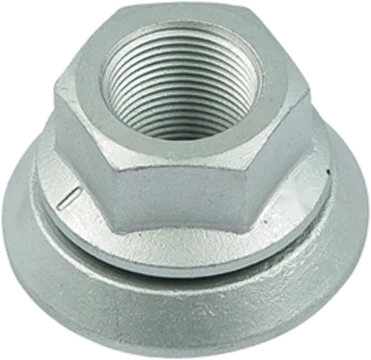

| Finishes | Zinc PlatedHot-Dip GalvanizedZinc Flake (Dacromet, Geomet, Magni, Delta-Protekt, Zintek)Zinc-NickelPassivatedPhosphatedBlack Oxide |
| Wheels | SteelAlloyAlcoa |
Finishes for Heavy-Duty Wheels
Truck wheel fasteners face salt, grit and pressure washers. We work with specialized partner plants for each coating, so every common truck finish comes from one supplier, under our own inspection.
one supplier
tested
Manufacturing & Quality
Hot Forging PARTNER
Wheel nut and bolt blanks forged from steel bar by long-term partner plants, checked by our QC.
CNC Machining
Done in house: threads, seats, sleeves and pressure plate seats turned to drawing tolerances.
Heat Treatment PARTNER
Hardened and tempered to the required strength class by partner plants, checked by our QC.
Surface Finishing PARTNER
Done by long-term partner plants, audited and controlled by our QC.
Final Inspection
Thread, dimension, hardness, salt-spray and appearance checks before shipping.
Have a Drawing, OE Number or Sample?
We match the part, make samples for approval, then produce to that standard.
Common Questions
Which thread sizes do you make?
Wheel nuts in M14×1.5, M16×1.5, M18×1.5, M20×1.5 and M22×1.5, plus 7/8″-11 BSF and 7/8″-14 UNF. Wheel bolts in M18 to M22 × 1.5 and M22 × 2.5, class 10.9 or 12.9, with left- and right-hand threads for JIS axles.
Can you make truck wheel nuts or bolts to my OE number?
Yes. Send an OE number, a drawing or a sample. We match thread, seat, hex, height, plate, sleeve, serration and head, then make samples for approval before mass production.
Which nut do I need: flat seat or ball seat?
Most European trucks, buses and trailers today use flat-seat (ISO) wheels with DIN 74361-3 thrust plate nuts. Older vehicles and some trailers use ball-seat nuts to DIN 74361-2. See the wheel nut page for the full type list.
Which finish should I choose for truck wheel fasteners?
Zinc plating for cost-sensitive volume, hot-dip galvanizing for trailers and outdoor fleets, Dacromet or other zinc-flake coatings for high-strength parts without hydrogen embrittlement, and zinc-nickel for the longest life on salted roads. Passivated, phosphated and black oxide finishes are also available.
What are your MOQ and lead time?
10,000 pieces per size for truck wheel nuts. Lead time is usually 40–60 days after sample approval, depending on finish and quantity.
Do you offer private-label packaging?
Yes. Bulk cartons and boxes can be packed under your brand and barcode.
Quote Truck Fasteners by OE Number, Drawing or Sample
Tell us what you need. An engineer, not a call center, reviews every request.
- 01Review within 24 hoursWe check your drawing, OE numbers or sample photos.
- 02Quotation & sample planPrice, MOQ, lead time and finish options.
- 03Samples, then mass productionApproved samples become your production standard.
